FRD43040C-A

Brand: FRIDA
Product Code: FRD43040C-A
Availability: Out Of Stock
Price: $14.22

5 or more $13.65
10 or more $13.37
50 or more $12.94

Available Options


Touch Screen:


Qty:

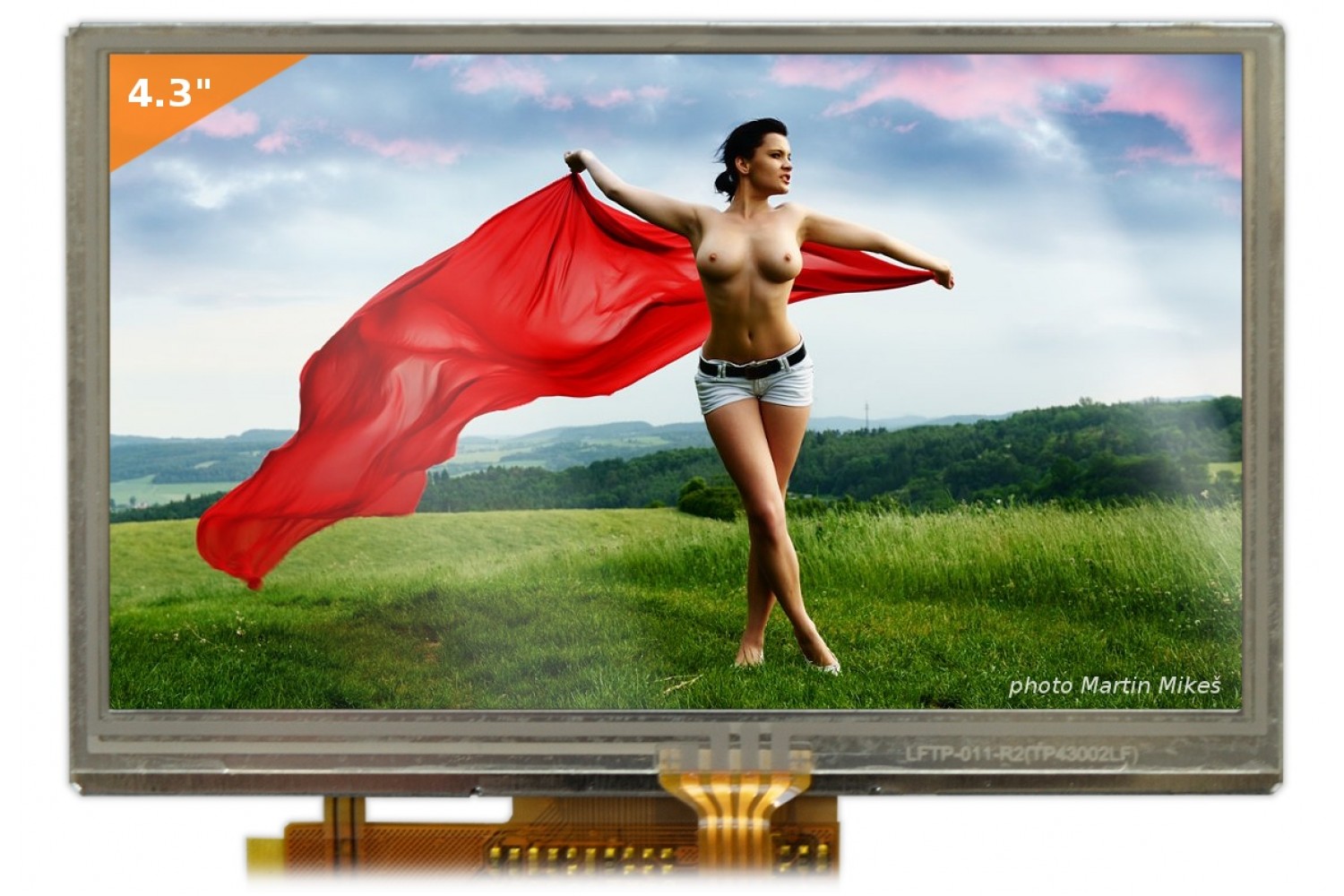

The FRD43040C-A is a diagonally measured 4.3" color TFT display module with 480(RGB)X272 resolution and 24bit RGB digital interface. Each pixel is divided into Red, Green and Blue sub-pixels and dots which are arranged in vertical stripes.

LCD color is determined with 262,000 colors signal for each pixel. The FRD43040C-A has been designed to apply the interface method that enables low power, high speed, and high contrast. The FRD43040C-A is intended to support applications where thin thickness, wide viewing angle and low power are critical factors and graphic displays are important.

The driver OTA5180A is mounted on the glass and the interconnection via FPC including components to drive the display module.

Features

  • normally white transmissive LCD
  • 6 o'clock viewing direction
  • RGB input signal
  • RGB vertical stripes pixel arrangement
  • OTA5180A IC drive
  • 4 wire resistive touch screen option
  • compatible connector pinout SET_1
  • white LED backlight 8 chips
Filename Description Date added Download link
OTA5180A Datasheet: Driver OTA5180A 2014-03-26 20:33:06 OTA5180A-C2_V091_Mutuality.pdf
FRD43040C-A Datasheet: Display LCD FRD43040C-A 2014-03-26 20:31:30 To download this file you must be logged!
There are some files to download. If you purchased this product, you will find available files here.
Specification
Diagonal 4.3"
Resolution 480 x 272
Aspect Ratio 16 : 9
Viewing Angle TOP - 12 o'clock
Interface 24-bit Digital RGB
Contrast Ratio 350
Luminance 250 cd/m2
Interconnect ZIF 40 x 0.5 mm
Electrical
Supply Voltage 3.3 V
Supply Current 10 mA without LED backlight
LED Backlight Voltage 25.6 V
LED Backlight Current 20 mA
Mechanical
Dimensions (W x H x D) 105.4 mm x 67.1 mm x 2.9 mm
Viewing Area (W x H) 95.04 mm x 53.856 mm
Pixel Pitch (W x H) 0.198 mm x 0.198 mm
Condition
Operating Temperature -20°C to +70°C
Operating Ambient Humidity 10 to 90 % RH
Storage Temperature -30°C to +80°C
Storage Humidity 10 to 90 % RH
