FRD43040I-D

Brand: FRIDA
Product Code: FRD43040I-D
Availability: In Stock
Price: $14.74

5 or more $14.15
10 or more $13.85
50 or more $13.41

Available Options


Touch Screen:


Qty:

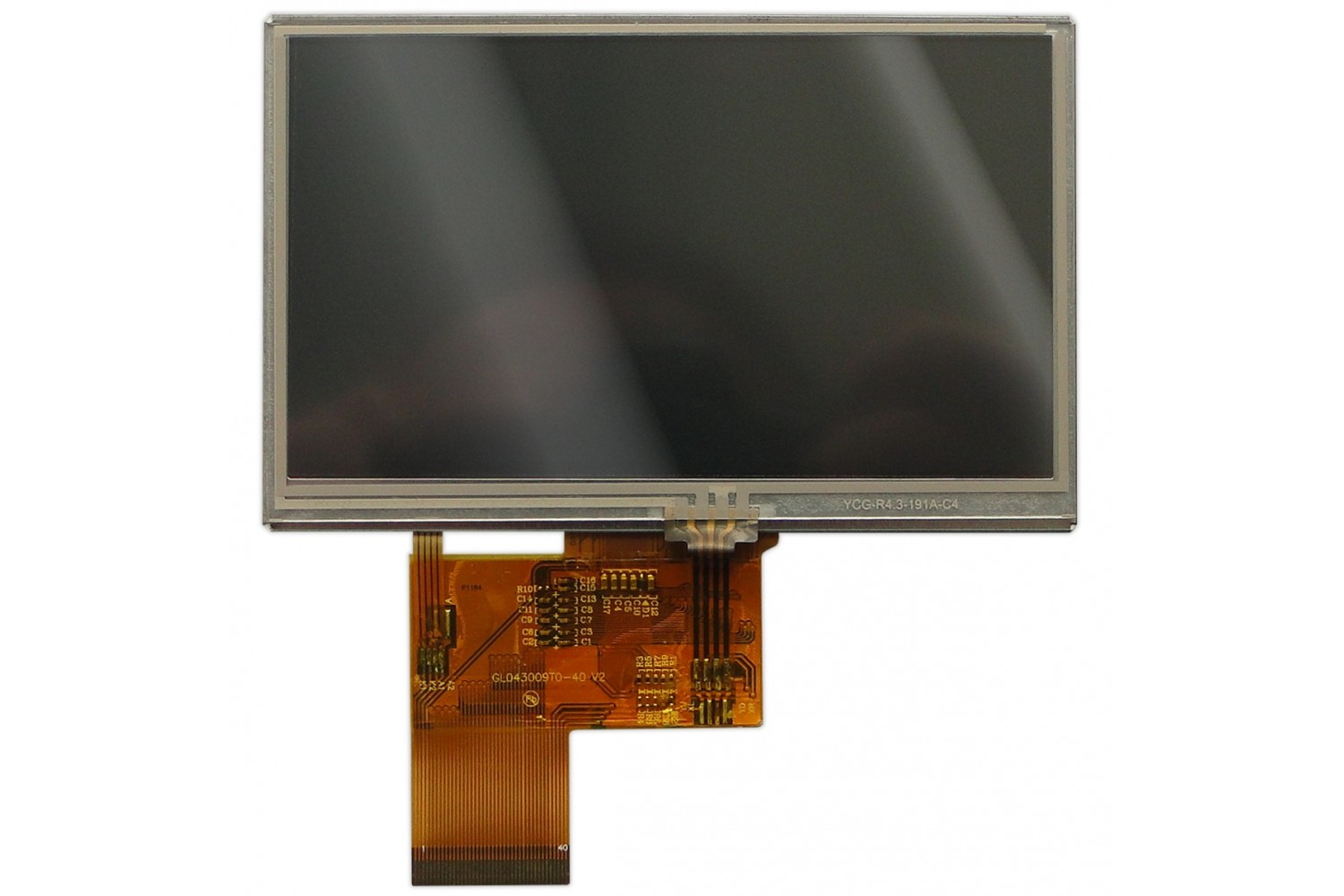

The FRD43040I-D is a high brightness low power 4.3" color TFT display module with 480(RGB)X272 resolution and 24bit RGB digital interface. Each pixel is divided into Red, Green and Blue sub-pixels and dots which are arranged in vertical stripes.

LCD color is determined with 262,000 colors signal for each pixel, 64-gray level with 2 bit dithering function to realize 16M colors. The FRD43040I-D has been designed to apply the interface method that enables low power, high speed, and high contrast. The FRD43040I-D is intended to support applications where thin thickness, wide viewing angle and low power are critical factors and graphic displays are important.

The driver Himax HX8257-A is mounted on the glass and the interconnection via FPC including components to drive the display module.

Features

  • normally white transmissive LCD
  • 6 o'clock viewing direction
  • RGB input signal
  • RGB vertical stripes pixel arrangement
  • HX8257A IC drive
  • 4 wire resistive touch screen
  • compatible connector pinout SET_1
  • white LED backlight 10 chips
Filename Description Date added Download link
HX8257 Datasheet: Driver HX8257 2014-03-26 20:37:59 HX8257.pdf
FRD43040I-D Datasheet: Display LCD FRD43040I-D 2014-03-26 20:35:44 To download this file you must be logged!
There are some files to download. If you purchased this product, you will find available files here.
Specification
Diagonal 4.3"
Resolution 480 x 272
Aspect Ratio 16 : 9
Viewing Angle BOTTOM - 6 o'clock
Interface 24-bit Digital RGB
Contrast Ratio 350
Luminance 300 cd/m2
Interconnect ZIF 40 x 0.5 mm
Electrical
Supply Voltage 3.3V
Supply Current 10 mA without LED backlight
LED Backlight Voltage 16.2 V
LED Backlight Current 40 mA
Mechanical
Dimensions (W x H x D) 105.5 mm x 67.2 mm x 2.95 mm
Viewing Area (W x H) 95.04 mm x 53.856 mm
Pixel Pitch (W x H) 0.198 mm x 0.198 mm
Condition
Operating Temperature -20°C to +70°C
Operating Ambient Humidity 10 to 90 % RH
Storage Temperature -30°C to +80°C
Storage Humidity 10 to 90 % RH
