KD035G7-40NC-A1

Brand: K&D Technology Co.,Ltd
Product Code: KD035G7-40NC-A1
Availability: Pre-Order
Price: $16.04

5 or more $15.40
10 or more $15.08
50 or more $14.60

Available Options


Touch Screen:


Qty:
This product has a minimum quantity of 10

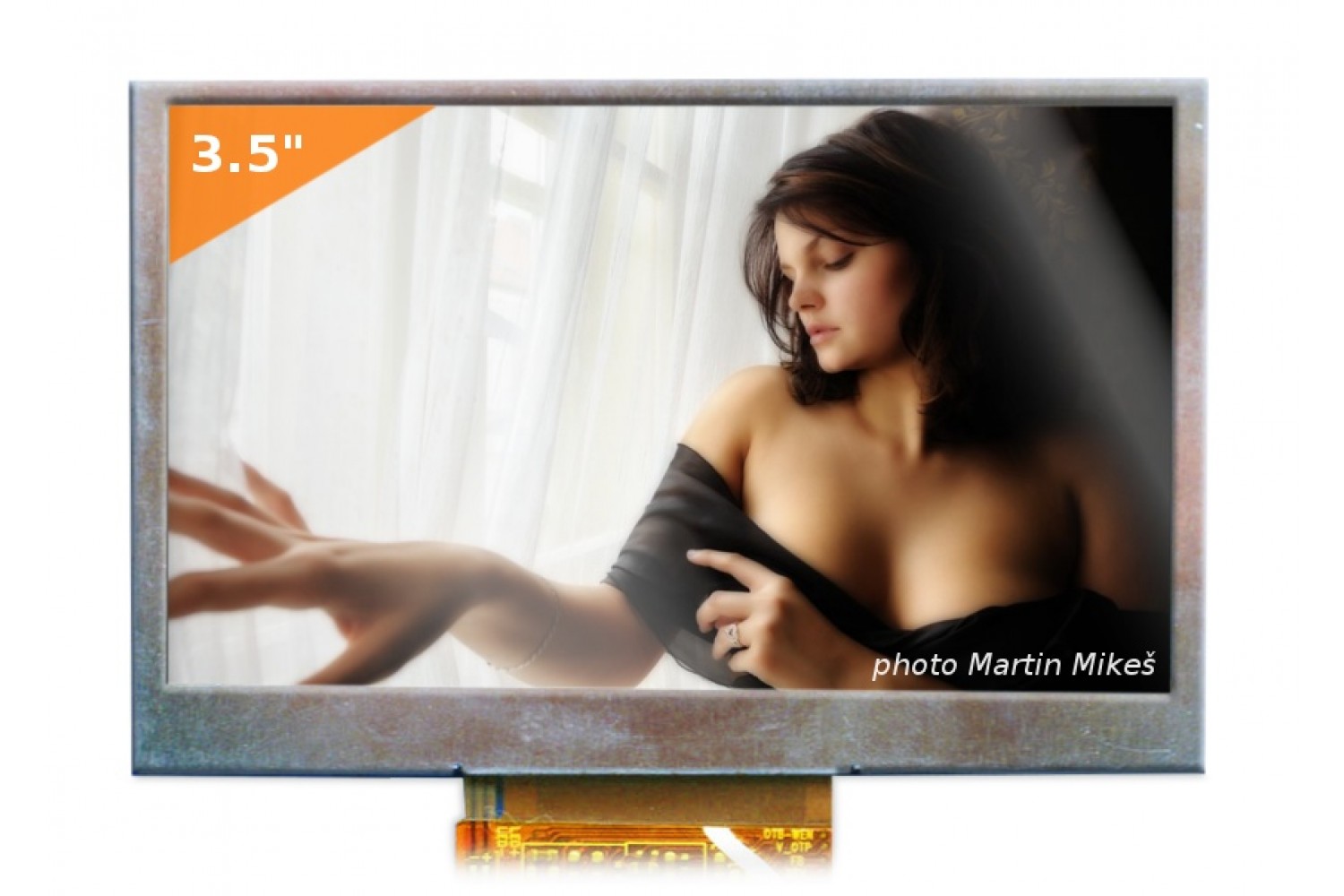

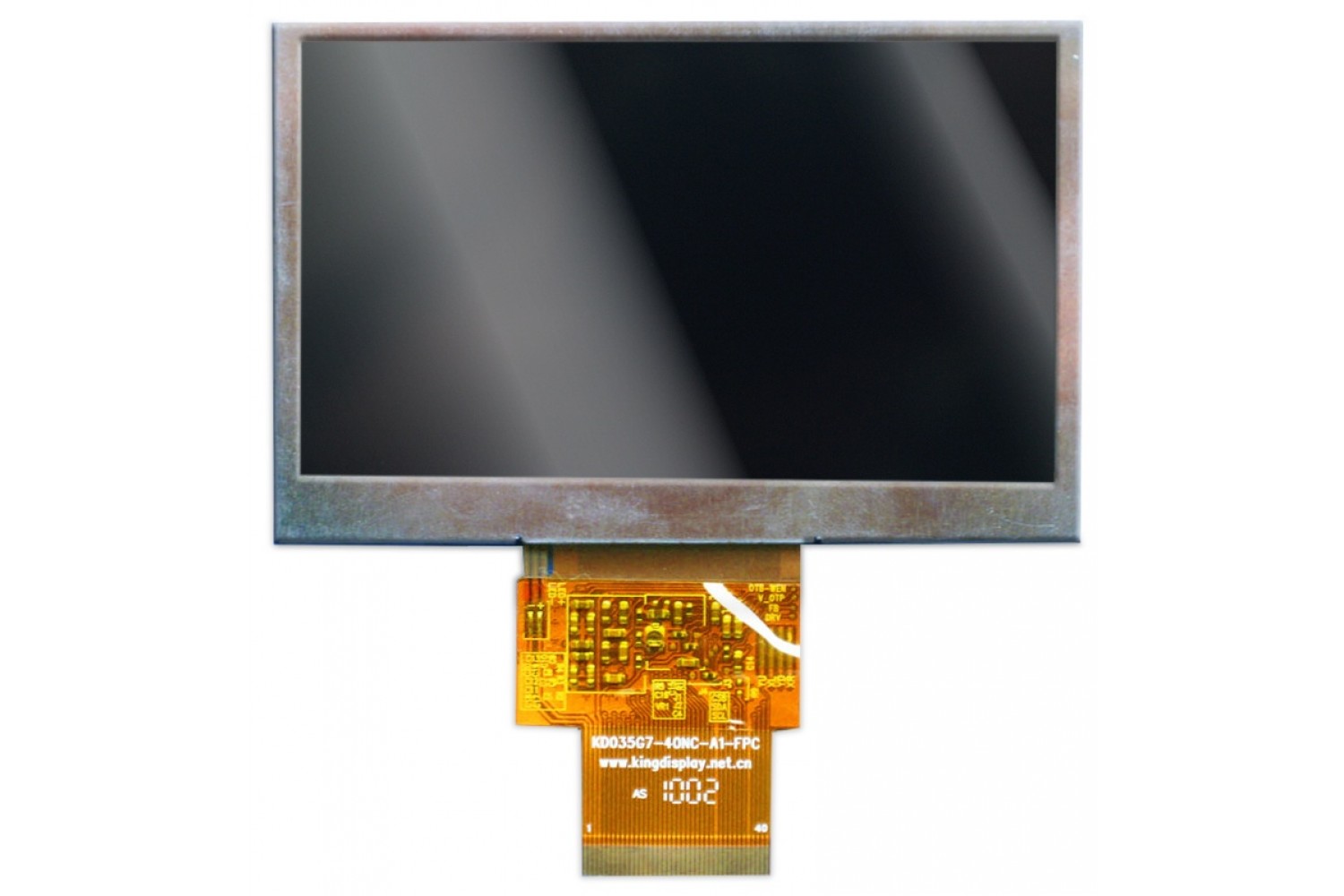

The KD035G7-40NC-A1 is a diagonally measured 3.5" color TFT display module with 480(RGB)X272 resolution and 24bit RGB digital interface. Each pixel is divided into Red, Green and Blue sub-pixels and dots which are arranged in vertical stripes.

LCD color is determined with 262,000 colors signal for each pixel. The KD035G7-40NC-A1 has been designed to apply the interface method that enables low power, high speed, and high contrast. The KD035G7-40NC-A1 is intended to support applications where thin thickness, wide viewing angle and low power are critical factors and graphic displays are important.

The driver OTA5180A is mounted on the glass and the interconnection via FPC including components to drive the display module.

Features

  • normally white transmissive LCD
  • 6 o'clock viewing direction
  • RGB input signal
  • RGB vertical stripes pixel arrangement
  • OTA5180A IC drive
  • 4 wire resistive touch screen
  • compatible connector pinout SET_1
  • white LED backlight 8 chips
Filename Description Date added Download link
OTA5180A Datasheet: Driver OTA5180A 2014-03-26 20:33:06 OTA5180A-C2_V091_Mutuality.pdf
KD035G7-40NC-A1 Datasheet: Display LCD KD35G7-40NC-A1 2014-03-27 19:29:19 To download this file you must be logged!
There are some files to download. If you purchased this product, you will find available files here.
Specification
Diagonal 3.5"
Resolution 480 x 272
Aspect Ratio 16 : 9
Viewing Angle BOTTOM - 6 o'clock
Interface 24-bit Digital RGB
Contrast Ratio 350
Luminance 400 cd/m2
Interconnect ZIF 40 x 0.5 mm
Electrical
Supply Voltage 3.3 V
Supply Current 4 mA without LED backlight
LED Backlight Voltage 19.8 V
LED Backlight Current 20 mA
Mechanical
Dimensions (W x H x D) 86.8 mm x 56..5 mm x 2.75 mm
Viewing Area (W x H) 77.76 mm x 43.52 mm
Pixel Pitch (W x H) 0.162 mm x 0.160 mm
Condition
Operating Temperature -20°C to +70°C
Operating Ambient Humidity 10 to 90 % RH
Storage Temperature -30°C to +80°C
Storage Humidity 10 to 90 % RH
