SQM4-K66

Brand: ELNICO
Product Code: SQM4-K66
Availability: Out Of Stock
Price: $39.95

Available Options


* Variant:

* Connection:

Qty:

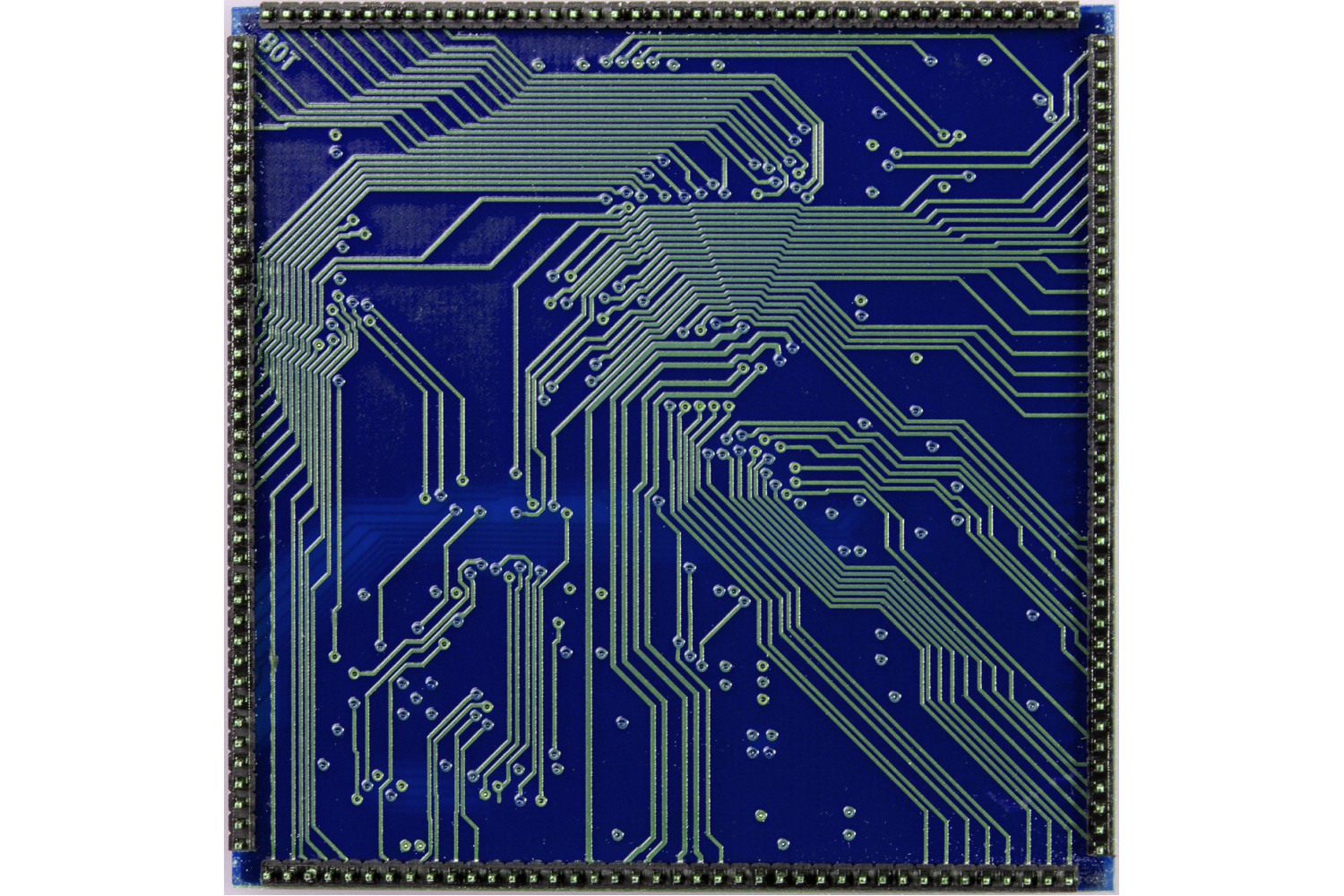

SQM4-K66 is a solderable computer module based on NXP Kinetis K66 microcontroller with ARM® Cortex®-M4F core. It runs at up to 180 MHz and consumes as little as 500mW.

The integrated Ethernet PHY provides 10/100 Mbit Ethernet connection with time stamp functionality. Together with 2x USB interfaces and on-chip Flash memory, this module is suitable for high-performance real-time applications with Ethernet and USB connectivity. Customers can mainly find it useful for proof-of-concept applications, rapid prototyping or small series production.

The module is offered in two variants:

  • SQM4-K66-F features a 32 KB SPI FRAM memory.
  • SQM4-K66-M features a 4 MB SPI NOR FLASH memory.

The Kinetis K66 series is well supported by a wide range of RTOS systems, e.g. FreeRTOS. Bare metal routines are supported as well, e.g. KSDK.


Filename Description Date added Download link
SQM4_K66_datasheet Datasheet of SQM4-K66 module 2017-02-06 08:53:42 To download this file you must be logged!

Hardware

MK66FN2M0VLQ18 Processor at the NXP website
KSZ8081 10Base-T/100Base-TX Ethernet PHY at the Microchip website



There are some files to download. If you purchased this product, you can find available files here.
Processor
Part MK66FN2M0
Core ARM Cortex M4F
Frequency 180 MHz
SRAM 256 kB
Memory
Flash On Chip 2 MB
FRAM On Module 32 KiB (32 k x 8; optional, -F variant)
FLASH On Module 4 MiB (32 Mb; optional, -M variant)
Networking
Ethernet 1x 10/100 Base-T/TX (KSZ8081)
Connectivity
USB 2x
