SQM4-VF6-M

Brand: ELNICO
Product Code: SQM4-VF6-M
Availability: In Stock
Price: $93.45

10 or more $88.78
100 or more $79.43

Available Options


* Connection:

Qty:

System-on-module with dual core microprocessor Vybrid VF6 from the SQM® modules serie. Besides the ARM Cortex A5 and M4 dual core microprocessor with 1.5 MB on-chip RAM memory it disposes of a 256 MB DDR3 SDRAM memory, 256 MB FLASH memory, 64 kB EEPROM, Dual Ethernet, USB and a wide range of other peripherals connectable via up to 141 GPIO. Quick and easy development is ensured by a JTAG connector. All this compressed on 16 cm2 only.

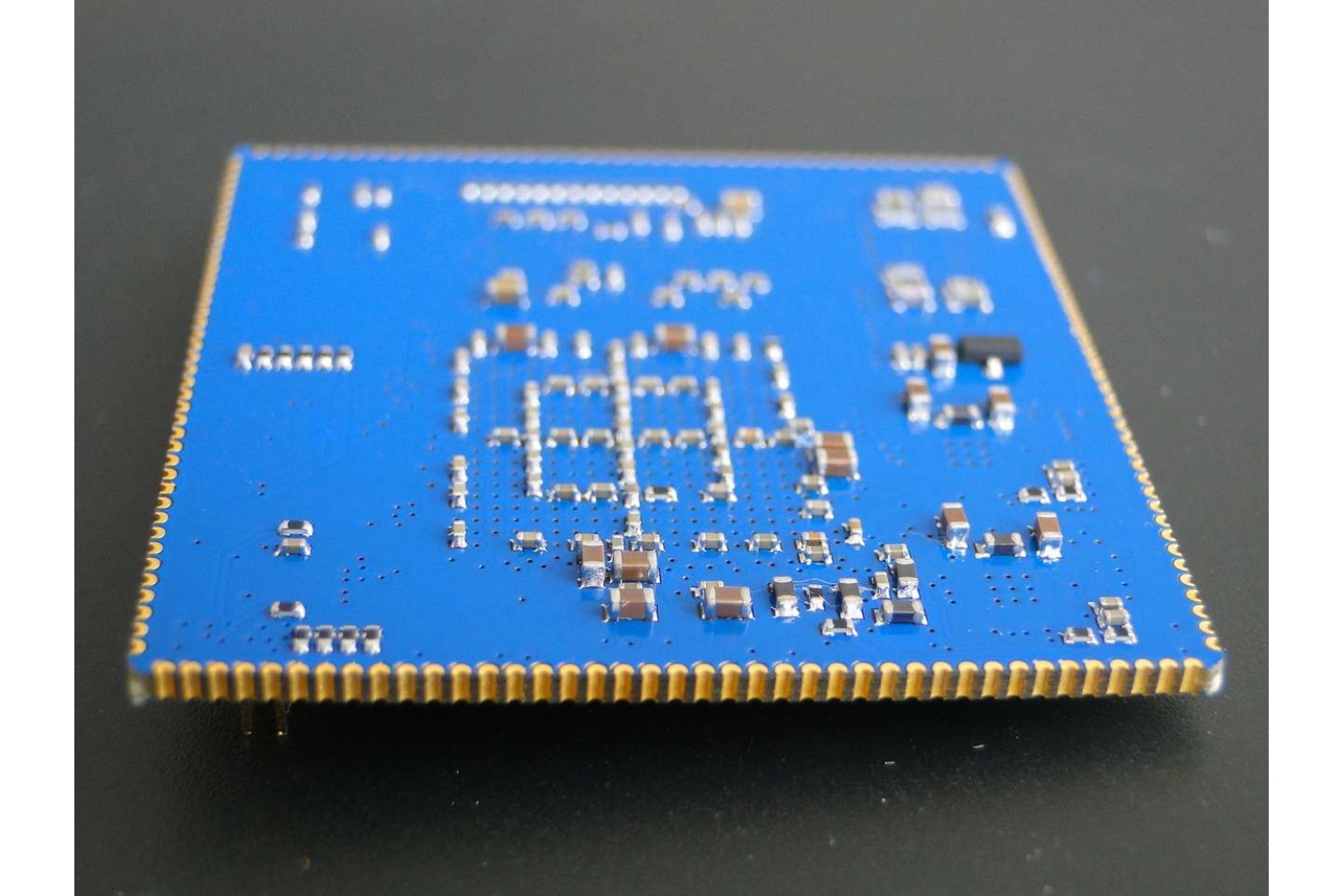

The module is placed on a thin ledge allowing the parts placement on both sides. Together with a high degree of integration it minimizes the module size, giving also an option to use the surface of motherboard for other (hidden) components. Rapid simplification of the motherboard circuits leads to usability of cheaper production technology and hence a significant price cut. The module is intended to be soldered directly on the board using the squared connection, providing 4 ways of assemblage - solderable pin, edge holes, RIM® or removable socket header connector.

For quick start with the SQM4-VF6 module we recommend to use EasyBoard, a development board expanding the most of the peripherals available on the module. The board itself illustrates how usage of SQM4 modules serie allows to produce full-fledged embedded device on simple two-layer board.

Features

  • MPU MVF61NS151CMK50 dual core A5 and M4
  • DP-FPU, NEON, L2 Cache
  • AMBA NIC
  • L2 Switch
  • DDR3 MT41K128M16
  • NAND FLASH MT29F2G08
  • EEPROM 25AA256
  • Dual Ethernet phy LAN8720I
  • Up to 141 GPIO with interrupt
  • Switching power 3.3 V / 1,5 A and 1.5 V / 1.5 A
  • Core LDO power supply 1.2V / 1 A
  • DDR reference and termination 0.75 V / 1 A
  • JTAG connector with trace possibility
  • Analog filter for AD and DA converter
  • Soldrable and removable variant
  • Flexible SW - Linux and/or MQX or other RTOS and/or BareMetal
  • oscilator 50 MHz, crystal 24 MHz and 32.768 kHz

Peripherals

  • UART up to 6
  • CAN up to 2
  • LCD RGB up to XVGA TFT with 2D GPU acceleration
  • Video analog and/or digital interface unit
  • Dual Quad SPI
  • USB 2.0 HOST and DEVICE/OTG
  • SDHC card interface
  • DSPI up to 4
  • I2C up to 4
  • I2S, AC97, SPDIF and CODE/DSP audio
  • OCU and ICU
  • AD converter up to 12 bit single ended
  • DA converter up to 12 bit
  • Hardware encryption accelerator
  • Hardware tamper detection
Filename Description Date added Download link
SQM4_VF6_leaflet Short leaflet about SQM4-VF6 module 2014-03-27 21:17:39 sqm4vf6_leaflet_preliminary.pdf
SQM4_footprint Footprint of SQM4 for PCB layout 2014-03-27 19:37:50 SQM4_footprint.pdf
VYBRIDFSERIESEC Vybrid VF6 DataSheet 2014-03-27 21:27:54 VYBRIDFSERIESEC.pdf
VYBRIDRM Vybrid Reference Manual 2014-03-27 21:29:03 VYBRIDRM.pdf
VYBRIDVF6FS Vybrid VF6 series leaflet 2014-03-27 21:26:36 VYBRIDVF6FS.pdf
Vybrid Controller Solutions Communicator Short leaflet about Vybrid series 2014-03-27 21:25:01 Vybrid Controller Solutions Communicator.pdf
SQM4_SCH_DECAL_Lib Design Library for PADS, ORCAD, EAGLE and ALTIUM 2015-10-06 09:36:09 To download this file you must be logged!
SQM4_VF6_datasheet Datasheet of SQM4-VF6 module 2014-03-27 21:19:16 To download this file you must be logged!
SQM4_VF6_schematic SQM4-VF6 public main schematic 2014-03-27 21:23:18 To download this file you must be logged!
SQM_VF6_v22_PSCH Public schematic of SQM4-VF6 v.22 module 2014-05-02 12:59:31 To download this file you must be logged!
VybridPinmuxSQM4 Pin multiplexing and SQM4 pinout for Vybrid 2015-07-11 20:13:48 To download this file you must be logged!
SQM4_VF6_v22_SCH Full schematic of the SQM4-VF6 v2.2 modules 2014-05-02 13:01:03 To download this file you must buy this product!
Freescale.com_VF6xx Link to Freescale Vybrid
LAN8720A.pdf_download Link to 100Mb Ethernet PHY
Micron_MT29f2g08abaeah4 Link to NAND Flash memory



There are some files to download. If you purchased this product, you will find available files here.
Specification
Microcontroller MFV61NS151CMK50
Core Dual ARM Cortex A5+M4
Electrical
Supply Voltage 3.3 V to 5.5 V DC
Supply Current 200 mA
Frequency 500 MHz and 150 MHz
Output Voltage 3.3 V
Output Current 0 to 500 mA
Memory
Flash On Chip 0 MB
SRAM On Chip 1500 kB
DDR On Module 128 M x 16
NAND On Module 256 M x 8
EEPROM On Module 64 kB
Mechanical
Dimensions (W x H x D) 42 mm x 42 mm x 5.5 mm (8.5mm with JTAG Con)
Weight 65 g
Condition
Operating Temperature -40 °C to +85 °C
Operating Ambient Humidity 10 to 90 % RH
Storage Temperature -40 °C to +105 °C
Storage Humidity 10 to 90 % RH
