SQM4-ZY7-Q (OBSOLETE)

Brand: ELNICO
Product Code: SQM4-ZY7-Q
Availability: Out Of Stock
Price: $324.95 $247.50

10 or more $308.70
100 or more $276.21

Available Options


* Connection:

Qty:

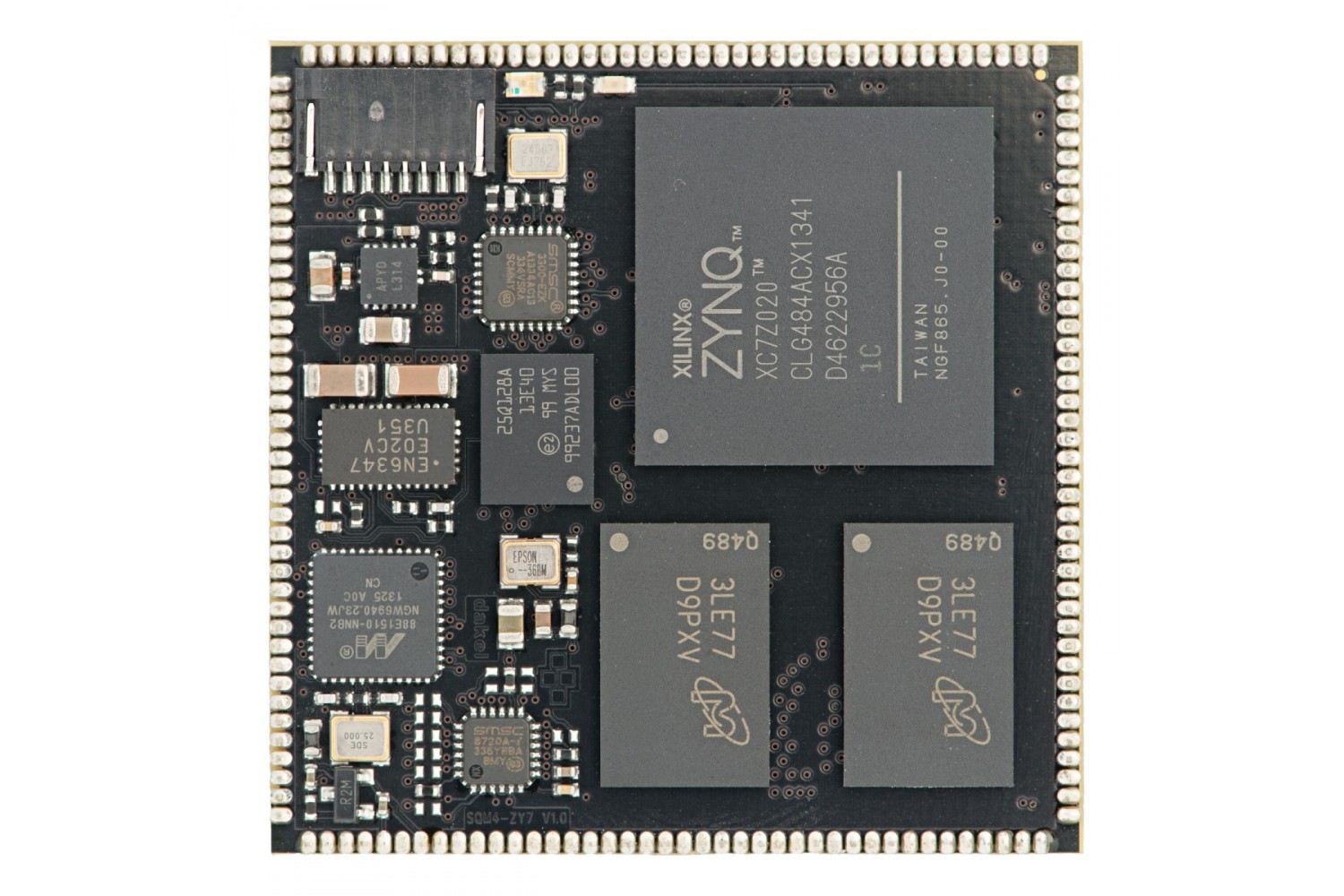

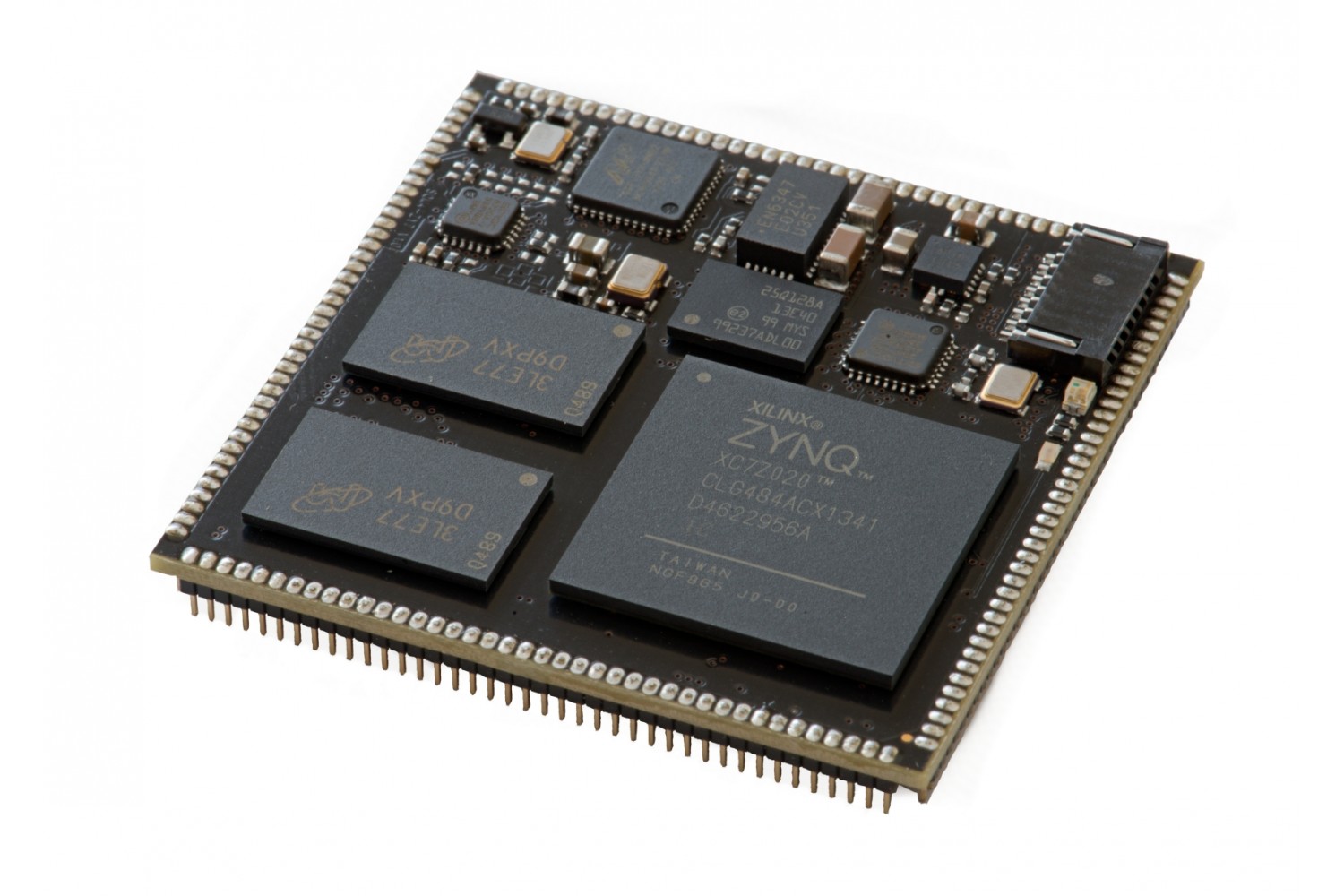

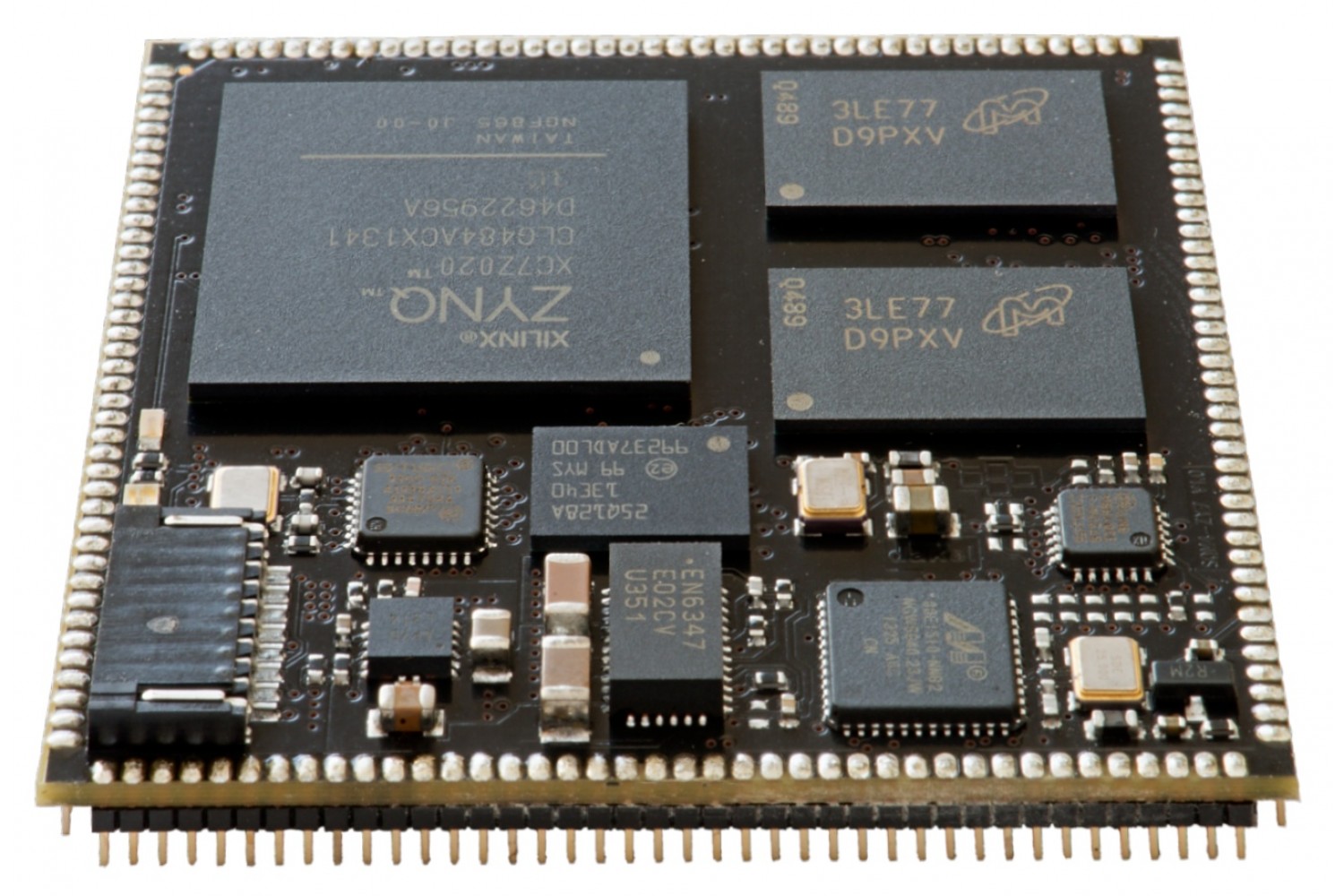

System-on-module with dual core microprocessor ZYNQ XC7Z020 from the SQM® modules serie. Besides the ARM Cortex A9 dual core microprocessor with 256kB of on chip dual port SRAM memory (OCM) accessible from PS and PL, it disposes of a 1 GB DDR3 SDRAM memory, 16 MB QSPI NOR FLASH memory, GBit and Fast Ethernet, USB and a wide range of other peripherals connectable via up to 141 GPIO. Quick and easy development is ensured by a JTAG connector. All this compressed on 16 cm2 only.

SQM4-ZY7 is a solderable computer module based on the Xilinx Zynq ZC7020 - All Programmable SoC which combines Dual Core ARM Cortex A9 microprocessor and FPGA programmable logic. The SQM4-ZY7 module adds the key peripheral circuitry needed to successfully use the Zynq device in a high-performance applications. Unique SQM4-ZY7 layout and mechanics enables to minimize total application cost by concentrating most of the hard-to-route and timing-sensitive signals on the module board. This approach not only simplifies design and routing of the application board; it also enables faster prototyping and shortens the total development time.

In addition to Zynq ZC7020 device, the module contains on board LPDDR3 memory, QSPI boot Flash, Gigabit network PTP-capable PHY with an option for 2nd 100M PHY, USB Host/Device PHY and RTC device. The module requires a single 5V/1A power supply input; additional required power levels are generated on board (3.3V, 1.8V, 1.35V and 1.0V levels).

For complete list of ZC7020 SoC features, please visit <a href="http://www.xilinx.com.

The module is placed on a thin ledge allowing the parts placement on both sides. Together with a high degree of integration it minimizes the module size, giving also an option to use the surface of motherboard for other (hidden) components. Rapid simplification of the motherboard circuits leads to usability of cheaper production technology and hence a significant price cut. The module is intended to be soldered directly on the board using the squared connection, providing 4 ways of assemblage - solderable pin, edge holes, RIM® or removable socket header connector.

For a quick prototyping and evaluating the SQM4 modules, consider using of the EasyBoard development kit which can be ordered at EasyBoard, a development board expanding the most of the peripherals available on the module. The board itself illustrates how usage of SQM4 modules serie allows to produce full-fledged embedded device on simple two-layer board. The EasyBoard enables the SQM4 module to be connected to display, I2C-based accelerometers, I2S audio system, RS232 and CAN communication interfaces and more.

Features

  • MPU ZYNQ XC7Z020 dual core A9 and rich FPGA
  • Compact 43x43 mm design
  • Single 5V power supply
  • 3.3V I/O pin operation
  • 3.3V output for motherboard logic (max 300 mA)
  • Precise differntial DDR3 and Gigabit Ethernet routing for maximum robustness
  • 100MHz clock to PL, 33.333MHz clock to PS
  • JTAG connector

Zynq SoC features directly usable with SQM4-ZY7 module

  • Dual ARM Cortex-A9 CPUs suitable for asymmetrical (AMP) or symmetrical multiprocessing (SMP) configurations
  • ARM v7 ISA: standard ARM instruction set and Thumb®-2, Jazelle® RCT and Jazelle BX Java™ acceleration
  • NEON 128b SIMD coprocessor and VFPv3 per core
  • 32KB instruction and 32KB data L1 caches with parity per core
  • 512 KB of shareable L2 cache with parity and Snoop Control Unit to maintain cache coherency
  • Core-private timers and watchdog timers per core
  • 256KB of on-chip dual port SRAM memory (OCM) accessible from PS and PL
  • Standard ARM DMA controller and GIC interrupt controller
  • Rich PS-to-PL AXI interconnectivity interface, interrupt lines, clock and reset signals
  • DDR Controller, by default connected to on-board 1Gbyte LPDDR3 memory in 2x256Mx16 configuration
  • Two Tripple-Counter/Timer modules
  • GPIO module with up to 192 signals routed to PL
  • Gigabit Ethernet module connected to on-board Marvel 88E1510 PHY
  • 100M Ethernet module connected to on-board Microchip LAN8270A PHY
  • USB 2.0 High-speed Host/Device/OTG controller connected to on-board Microchip USB3300 ULPI PHY
  • QSPI controller with execute-in-place capability connected to on-board N25Q128 16Mbyte serial Flash
  • I2C module connected to module edge connector and also to on-board AB-RTCMC Real Time Clock device
  • SPI, UART and CAN communication modules connected to module edge connector
  • SD Card interface signals connected to module edge connector
  • Additional I2C, SPI, UART and CAN communication modules with EMIO connectivity to PL and from PL to any edge connector pins

Peripherals

  • PS - UART
  • PS - SPI
  • PS - I2C
  • PS - USB 2.0 OTG
  • PS - Gbit Ethernet
  • PL - Fast Ethernet
  • PL - ut to 110 FPGA I/O
  • A/D converter
Filename Description Date added Download link
SQM4_footprint Footprint of SQM4 for PCB layout 2014-03-27 19:37:50 SQM4_footprint.pdf
SQM4_ZY7_v10_PSCH SQM4-ZY7 module short schematic 2014-04-10 16:39:17 To download this file you must be logged!
SQM4_ZY7_v10_datasheet Datasheet of SQM4-ZY7 module 2014-05-07 16:10:59 To download this file you must be logged!
SQM4-ZY7-Schematic v20 New version with dual 1G Ethernet Phy, variable bank power, expandable USB and much more 2014-11-06 15:21:20 To download this file you must buy this product!
SQM4-ZY7-intro Introduction and first project for SQM4-ZY7 with Xilinx VIVADO 2014-08-07 11:59:05 To download this file you must buy this product!
SQM4-ZY7-training Folders and files for SQM4-ZY7 training with VIVADO 2014-08-07 12:21:02 To download this file you must buy this product!
SQM4_ZY7_schematic Full schematic for SQM4_ZY7_v10 2014-04-09 21:00:13 To download this file you must buy this product!
SQM4_ZY7_v10_PCB Printed cirquit board of SQM4_ZY7 pdf file 2014-04-09 21:31:55 To download this file you must buy this product!
AB-RTCMC-32.768kHz-EOZ9-S3.pdf-download Link to RTC IO download
Marvel_Alaska_88E1510_Gigabit PHY_product_brief.pdf Link to Gb Ethernet PHY
LAN8720A.pdf_download Link to 100Mb Ethernet PHY
USB3300‎_download Link to USB PHY
www.xilinx.com Link to Xilinx
Zynq-7000_series Link to Zynq 7000 series SoC
Micron_serial-nor-flash Link to QSPI Nor Flash memory



There are some files to download. If you purchased this product, you will find available files here.
Specification
Microcontroller ZYNQ XC7Z020
Core Dual ARM Cortex A9+FPGA
Electrical
Supply Voltage 3.3 V to 5.5 V DC
Supply Current 1000 mA
Frequency 800 MHz
Output Voltage 3.3 V
Output Current 0 to 300 mA
Memory
Flash On Chip 0 MB
SRAM On Chip 256 kB dual port
DDR On Module 256 M x 32
NAND On Module 128 Mb QSPI
Mechanical
Dimensions (W x H x D) 42 mm x 42 mm x 5.5 mm
Weight 65 g
Condition
Operating Temperature -40 °C to +85 °C
Operating Ambient Humidity 10 to 90 % RH
Storage Temperature -40 °C to +105 °C
Storage Humidity 10 to 90 % RH
