ExpSpiCom

Brand: ELNICO
Product Code: SQM4-ExpSpiCom
Availability: In Stock
Price: $40.00

5 or more $37.20

Available Options


* SPI memory:



Qty:

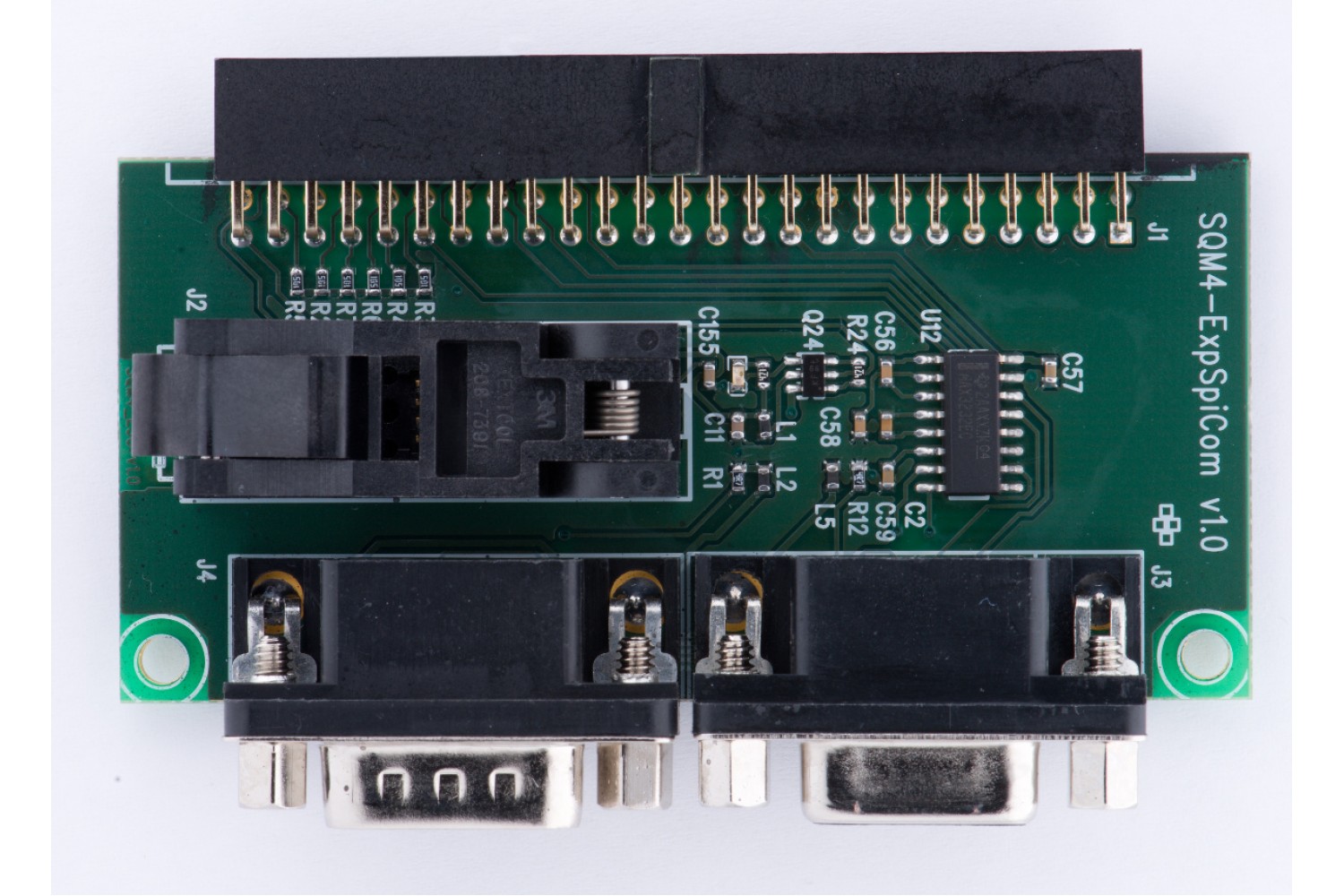

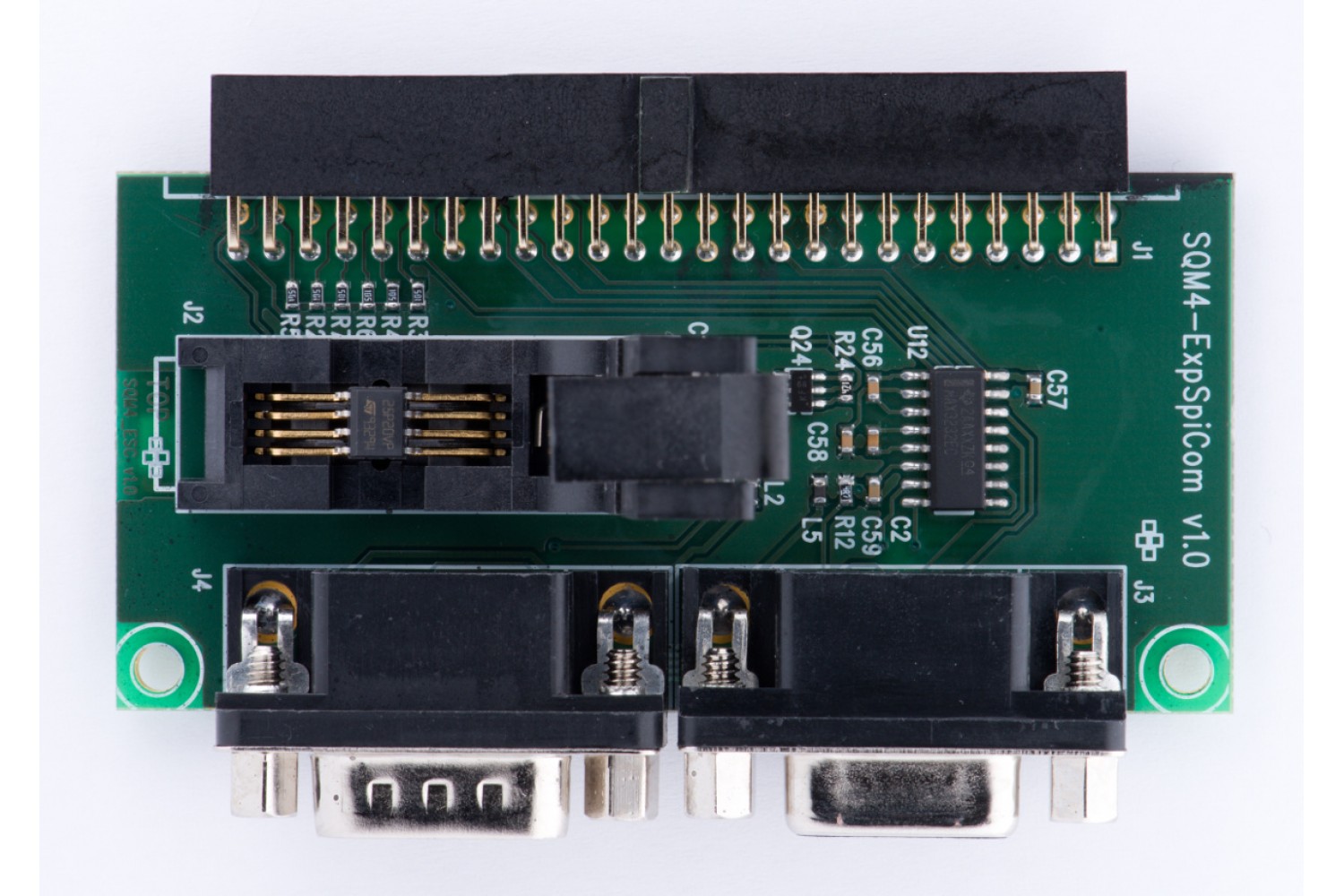

Expansion board for EasyBoard's I/O Expansion Connector. Implements one serial port (UART2) expanding to both male and female DE-9 connector, and one SPI memory (on SPI2 channel).

Additional serial port can be particularly useful with Vybrid development, allowing to assign each core a different UART channel.

SPI memory can be either assembled on the board (32 kB SPI EEPROM), or there can be an SO-8 programmer adapter socket for SPI memory programming.

Filename Description Date added Download link
file v1 for everyone description for file v1 for everyone blabla 2014-02-27 22:50:23 0123.pdf
ExpSpiCom_v10_SCH Schematics 2014-03-26 20:24:16 To download this file you must be logged!
file v2 for logged description for file v2 for logged 2014-02-27 22:50:51 To download this file you must be logged!
file v2 for customer description for file v2 for customer 2014-02-27 22:52:46 To download this file you must buy this product!
ExpSpiCom_v10_SCH.pdf Schematics



There are some files to download. If you purchased this product, you will find available files here.
Specification
Interconnect MLW50_MALE
Mechanical
Dimensions (W x H x D) 80 mm x 60 mm x 20 mm
