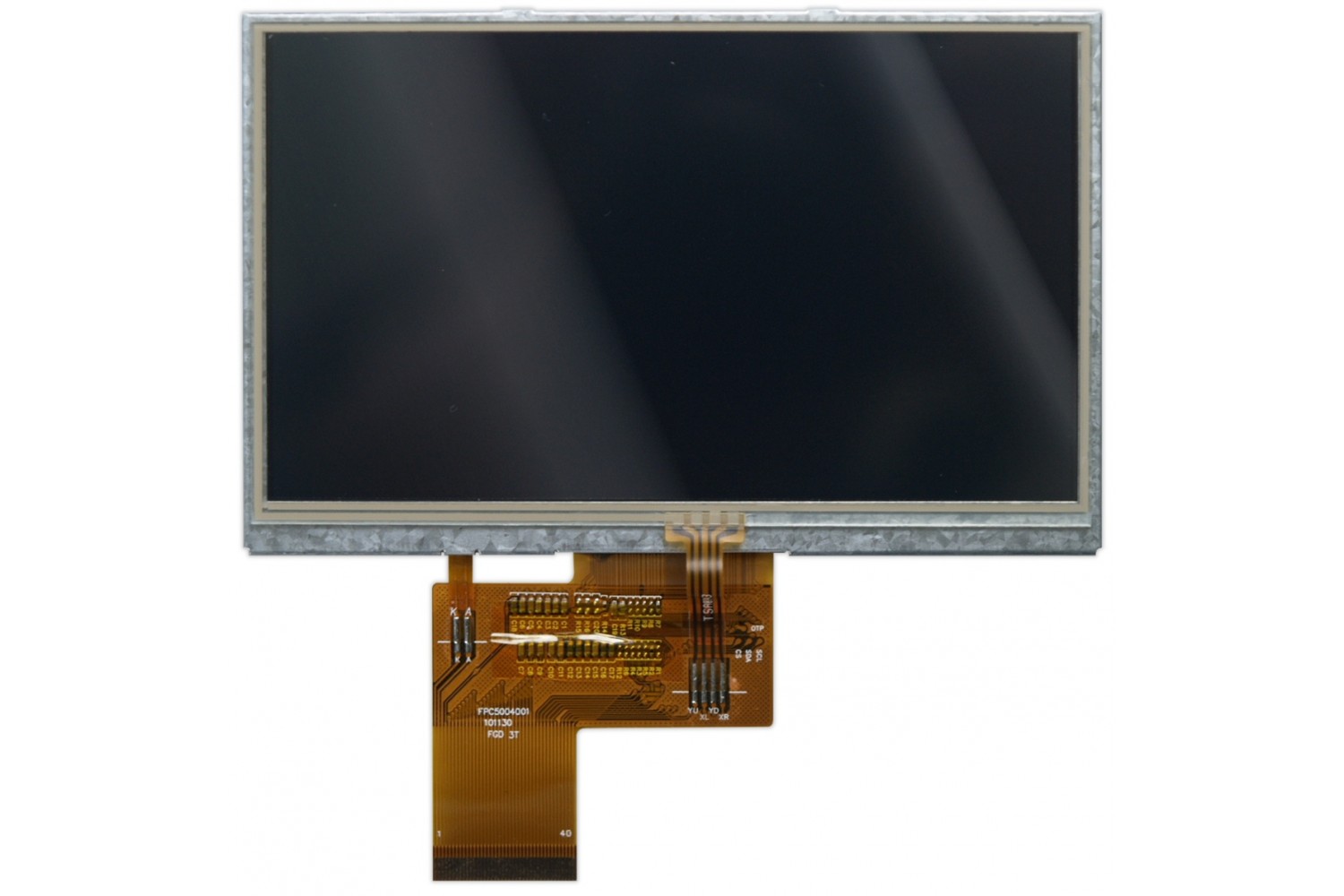

The FRD500A4001 is a diagonally measured 5" color TFT display module with 480(RGB)X272 resolution and 24bit RGB digital interface. Each pixel is divided into Red, Green and Blue sub-pixels and dots which are arranged in vertical stripes.
LCD color is determined with 262,000 colors signal for each pixel plus 256 gray scale with dithering to realize 16M colors. The FRD500A4001 has been designed to apply the interface method that enables low power, high speed, and high contrast. The FRD500A4001 is intended to support applications where thin thickness, wide viewing angle and low power are critical factors and graphic displays are important.
The driver OTA5180A is mounted on the glass and the interconnection via FPC including components to drive the display module.
| Filename | Description | Date added | Download link | |
|---|---|---|---|---|
| ILI6480G | Datasheet: Driver ILI6480G | 2014-03-26 20:42:20 | ILI6480G_DS_V004_GP.pdf | |
| FRD500A4001 | Datasheet: Display LCD FRD500A4001 | 2014-03-26 20:40:45 | To download this file you must be logged! |
| Specification | |
| Diagonal | 5.0" |
| Resolution | 480 x 272 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle | TOP - 12 o'clock |
| Interface | 24-bit Digital RGB |
| Contrast Ratio | 350 |
| Luminance | 420 cd/m2 |
| Interconnect | ZIF 40 x 0.5 mm |
| Electrical | |
| Supply Voltage | 3.3V |
| Supply Current | 10 mA without LED backlight |
| LED Backlight Voltage | 19.2 V |
| LED Backlight Current | 40 mA |
| Mechanical | |
| Dimensions (W x H x D) | 120.7 mm x 75.8 mm x 4.3 mm |
| Viewing Area (W x H) | 110.88 mm x 62.83 mm |
| Pixel Pitch (W x H) | 0.198 mm x 0.198 mm |
| Condition | |
| Operating Temperature | -20°C to +70°C |
| Operating Ambient Humidity | 10 to 90 % RH |
| Storage Temperature | -30°C to +80°C |
| Storage Humidity | 10 to 90 % RH |
