SQM4-K70

Brand: ELNICO
Product Code: SQM4-K70
Availability: In Stock
Price: $82.75

10 or more $78.61
50 or more $76.13
100 or more $72.82

Available Options


* Variant:

* Connection:

Qty:

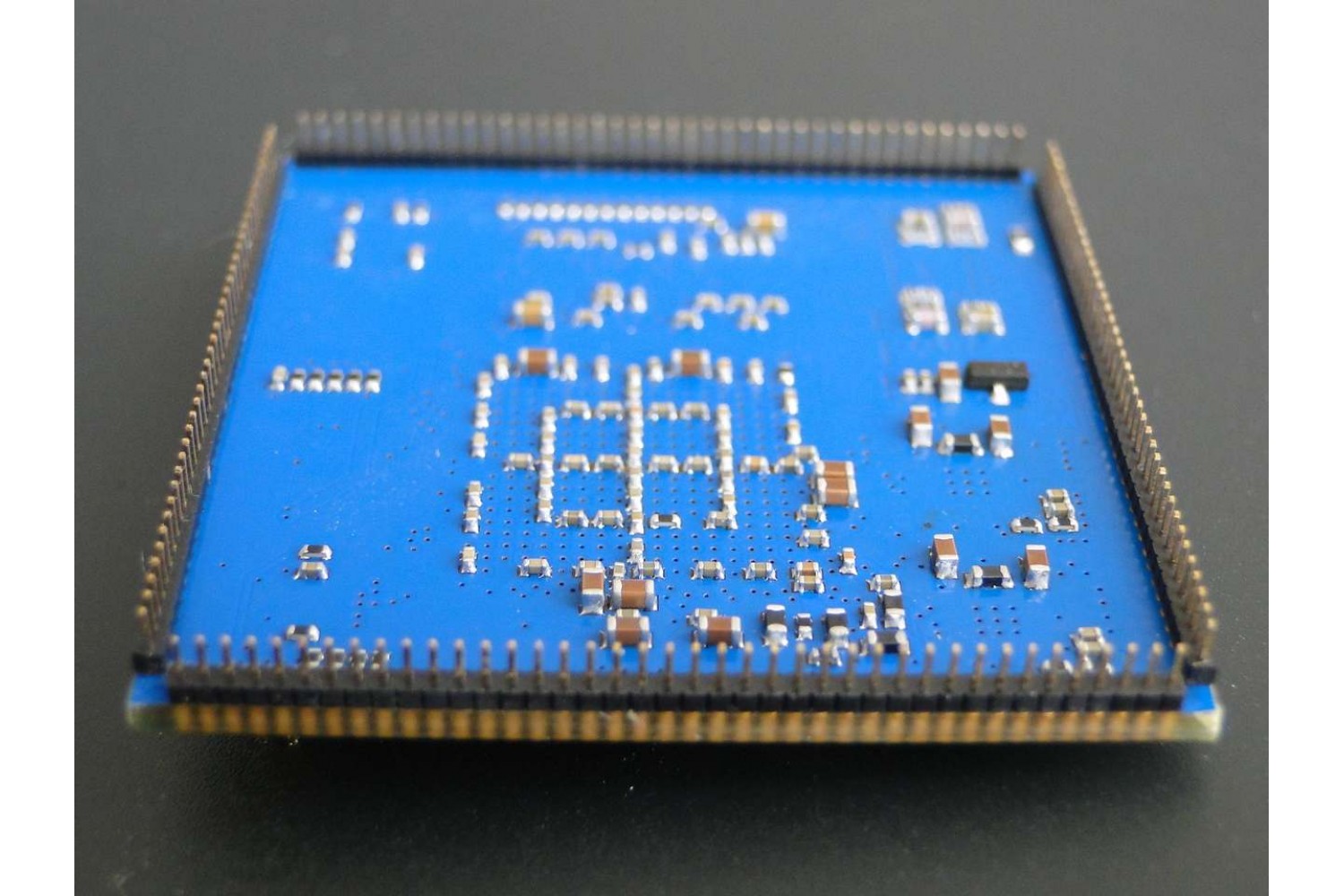

SQM®4 system-on-module with a universal microcontroller Kinetis K70. This popular microcontroller powered by the well-established ARM® Cortex® M4 core, clocked at 150 MHz, is suitable for a wide range of control and measurement applications with graphical LCD, USB and wired/wireless network connectivity. Wide support of RTOSes (e.g. MQX, FreeRTOS) and availability of baremetal examples allows quick and comfortable development while keeping all system resources under full control.

With 1 MB on-chip SRAM, 128 MB DDR2 SDRAM memory, 256 MB NAND FLASH, 100 Mbit Ethernet PHY, WiFi/EEPROM, USB PHY and a wide range of other peripherals, interfaced via RIM®, the module is ready to simplify, cheapen and speed up your development.

The module is offered in two variants:

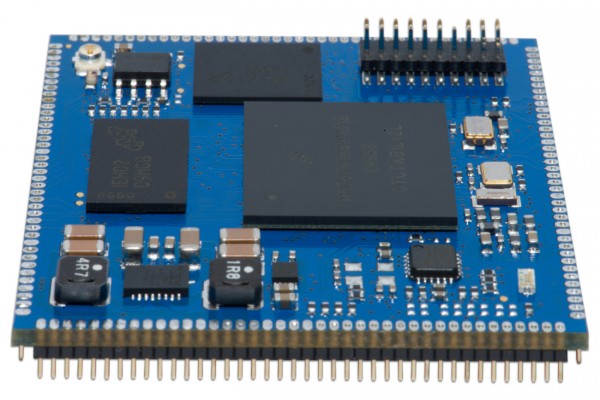

  • SQM4-K70-W features a low-power WiFi chip AR4100P, supporting IEEE 802.11 b/g/n modes, and u.FL antenna connector.
    We provide the MQX RTOS driver for both cores.
  • SQM4-K70-M features a 32 kB SPI EEPROM memory 25AA256.

For quick start with the SQM4-K70 module we recommend to use EasyBoard, a development board expanding the most of the peripherals available on the module. The board itself illustrates how usage of SQM4 modules serie allows to produce full-fledged embedded device on a simple two-layer board.

Filename Description Date added Download link
KINETIS_120MHZ_SC Sample codes for K70/SQM4-K70 2014-03-27 19:47:57 KINETIS_120MHZ_SC.zip
SQM4_K70_datasheet Datasheet of SQM4-K70 module 2014-03-27 19:58:08 SQM4_K70_datasheet.pdf
SQM4_footprint Footprint of SQM4 for PCB layout 2014-03-27 19:37:50 SQM4_footprint.pdf
SQM4_K70_v22_psch Schematic of main parts of SQM4-K70 v2.2 module 2014-03-27 19:59:55 To download this file you must be logged!
SQM4_SCH_DECAL_Lib Design Library for PADS, ORCAD, EAGLE and ALTIUM 2015-10-06 09:36:09 To download this file you must be logged!
EasyDemo Out of the box demo application for SQM4-K70 modules. Version 2.01 with updated Getting Started document. 2014-10-19 18:55:45 To download this file you must buy this product!
SQM4-K70: Getting Started Getting Started for EasyBoard Dev Kit with SQM4-K70 modules. 2014-10-19 18:59:04 To download this file you must buy this product!
SQM4_K70_v22_SCH Full schematic of the SQM4-K70 v2.2 modules 2014-04-23 16:22:23 To download this file you must buy this product!

Hardware

MK70FN1M0VMJ15 Processor at the NXP website
MT29F2G08ABAEAH4-IT NAND Flash at the Micron website
KSZ8041NL 100 Mbit Ethernet PHY at the Microchip website
AR4100P WiFi SIP product brief
25AA256 SPI EEPROM at the Microchip website

Software

FreeRTOS demo SQM4-K70-EasyBoard demo from the FreeRTOS.org website
There are some files to download. If you purchased this product, you can find available files here.
Processor
Part MK70FN1M0VMJ15
Core ARM Cortex M4
Frequency 150 MHz
SRAM 128 KiB
FPU VFPv4
Security MPU, CRC, RNG, mmCAU, Tamper, Watchdog
Memory
Flash On Chip 1 MB
DDR On Module 128 MiB (64 M x 16)
NAND On Module 256 MiB (256 M x 8)
EEPROM On Module 32 KiB (optional)
Networking
Ethernet 1x 100 Mbit PHY
WiFi IEEE 802.11 b/g/n (optional), u.FL connector
Display and Multimedia
RGB 1x 24-bit, up to SVGA
Connectivity
USB 1x 2.0 OTG PHY
MMC/SD 1x
UART 6x
I2C 2x
SPI 3x
I2S, ESAI 1x
CAN 2x
GPIO up to 135x
Electrical
Supply Voltage 3.3 V to 5.5 V DC
Supply Current 120 mA
Output Voltage 3.3 V (3.3<Vin<5.5V)
Output Current 0 to 500 mA
Mechanical
Dimensions (W x H x D) 43 mm x 43 mm x 5.5 mm (8.5mm with JTAG Con)
Weight 65 g
Condition
Operating Temperature -40 °C to +85 °C
Operating Ambient Humidity 10 to 90 % RH
Storage Temperature -40 °C to +105 °C
Storage Humidity 10 to 90 % RH
