SQM4-SX6

Brand: ELNICO
Product Code: SQM4-SX6
Availability: Pre-Order
Price: $143.45

10 or more $136.28
100 or more $121.93

Available Options


* Connection:

* Ethernet PHY:

QSPI:

RTC:


Qty:

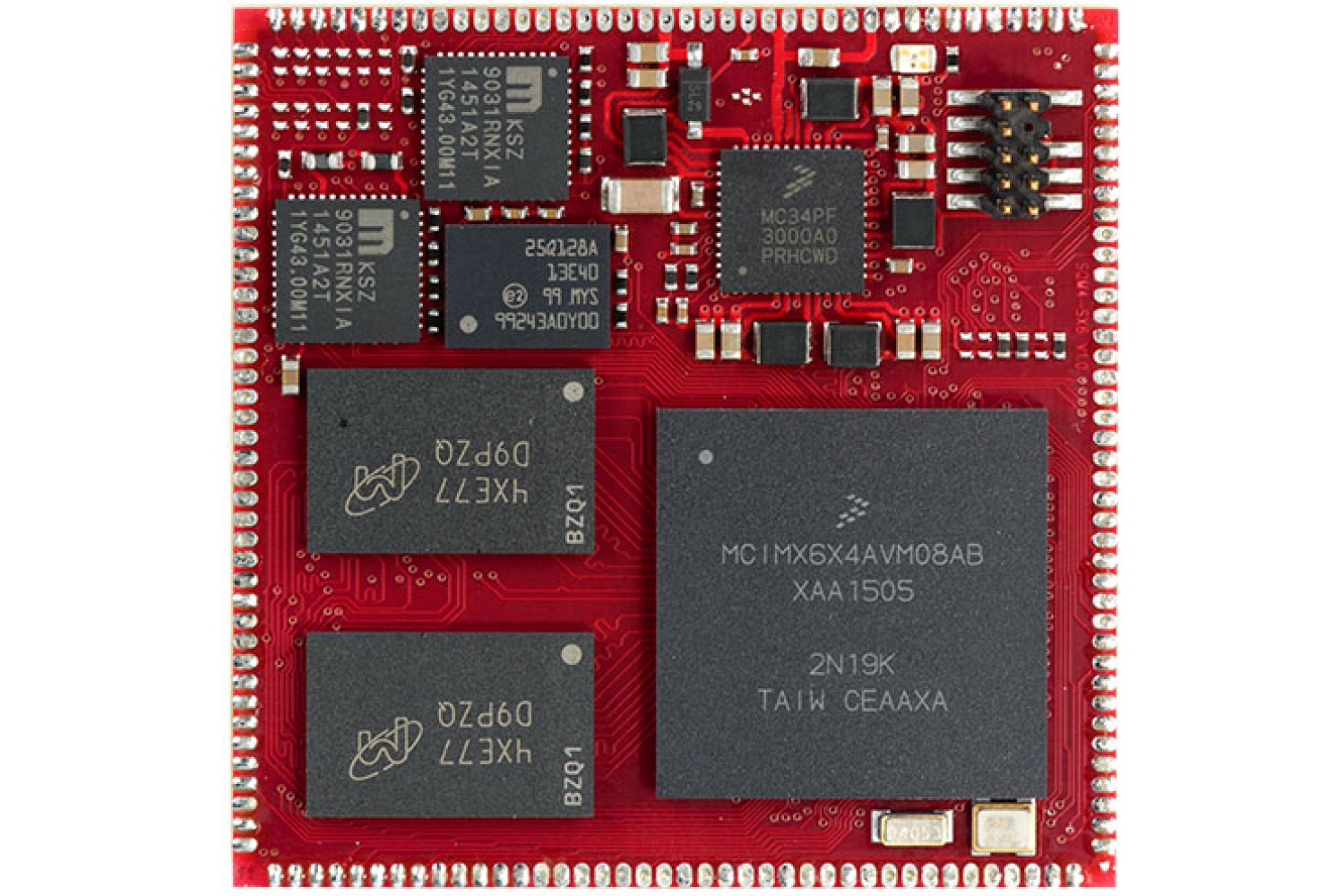

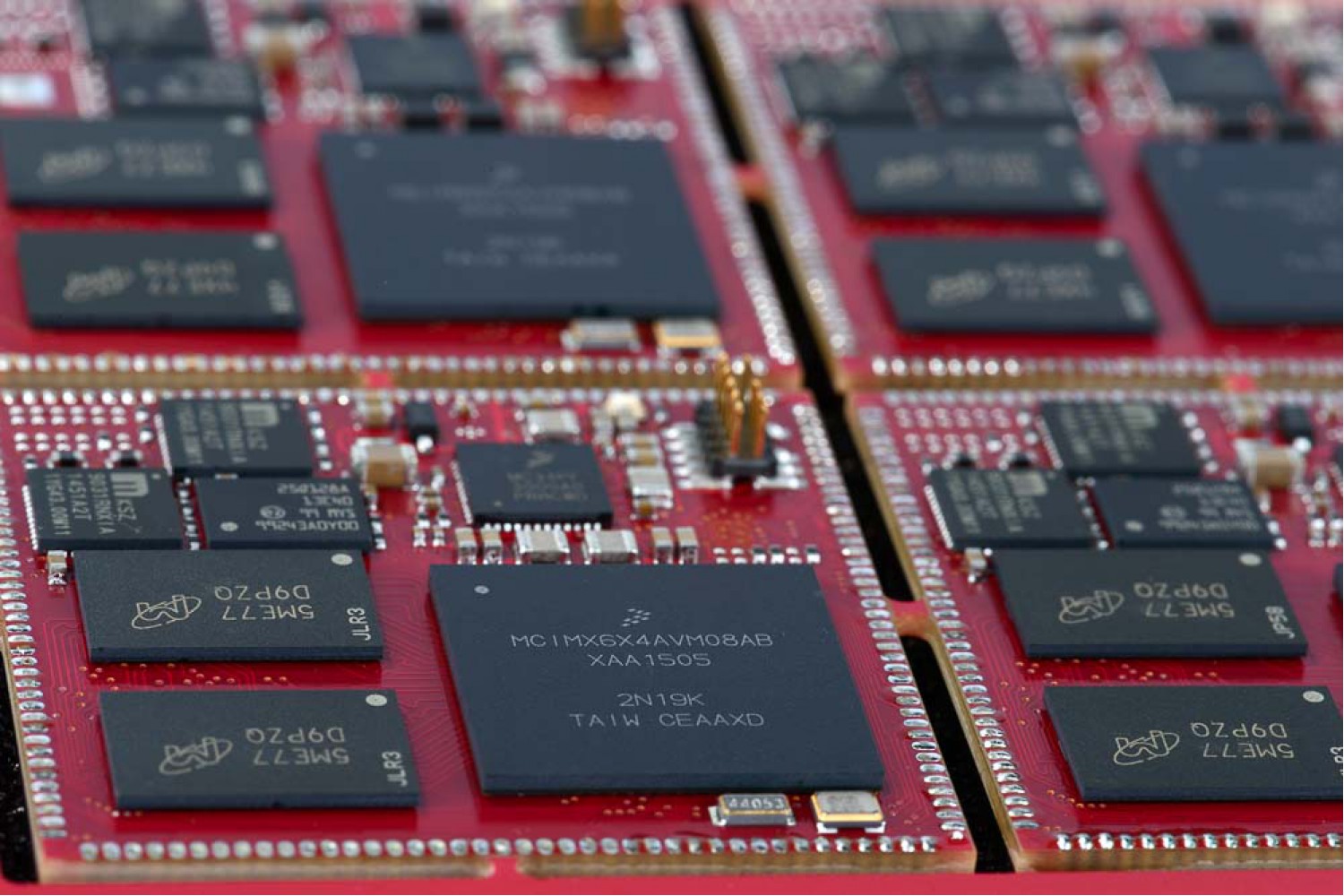

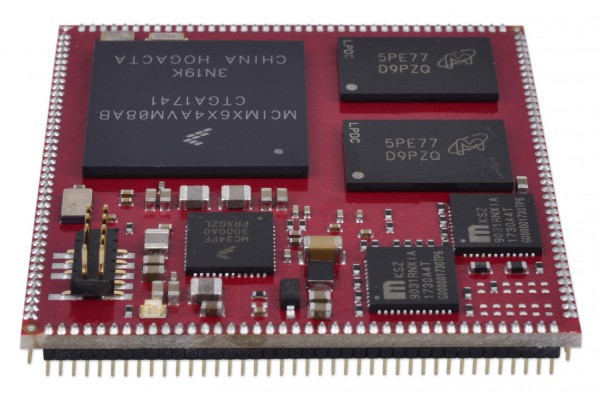

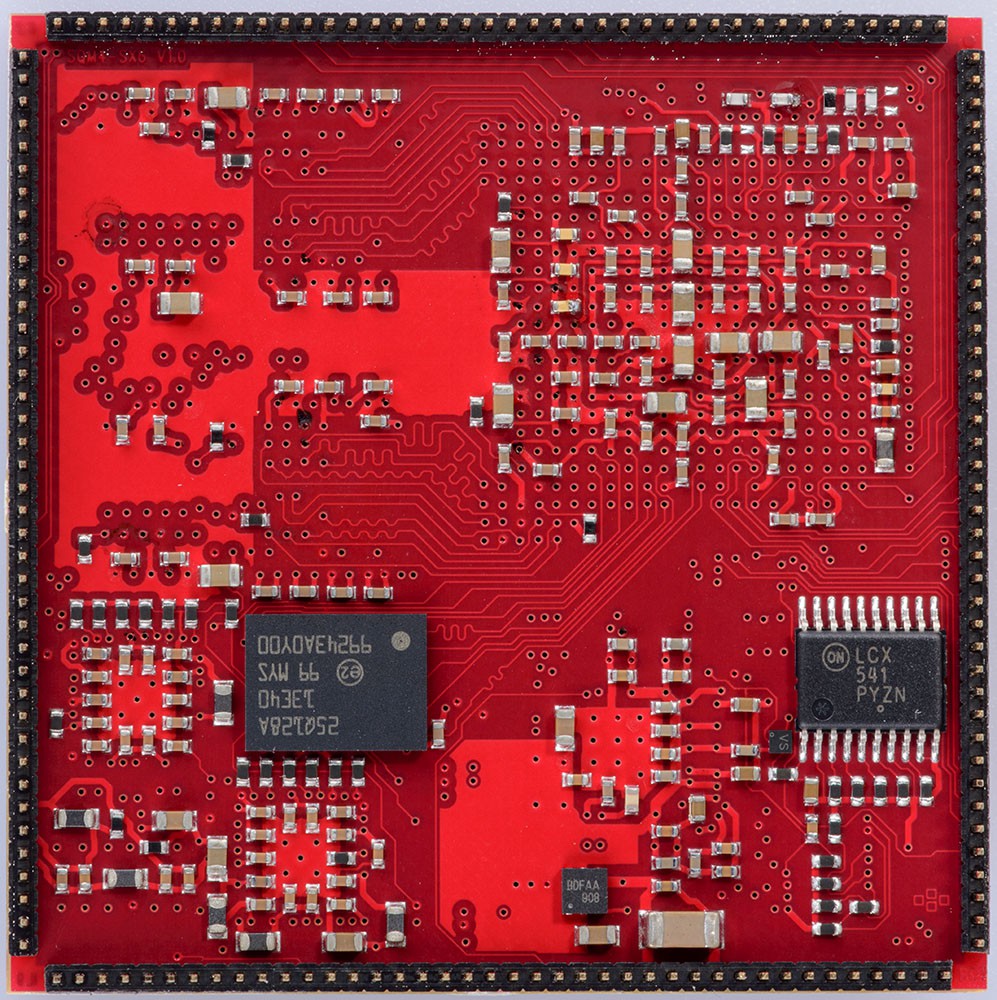

SQM®4 system-on-module with full-featured automotive dual-core microprocessor NXP i.MX 6SoloX. This heterogeneous multicore processor, utilizing ARM® Cortex®-A9 (800 MHz) and ARM Cortex-M4 (200 MHz) cores, is designed for concurrent execution of multiple software environments, e.g. Linux or Android in parallel with FreeRTOS, MQX or baremetal firmware, hence enabling for secure and reliable real-time applications with rich human-machine interface and networking.

With 1 GB DDR3 SDRAM memory, 256 MB NAND FLASH, optional 32 MB QSPI NOR FLASH, Single/Dual Gigabit Ethernet PHY, 2x USB PHY, optional high-precision RTC and a wide range of other peripherals, interfaced via RIM®, the module is ready to simplify, cheapen and speed up your development.

Filename Description Date added Download link
SQM4_footprint Footprint of SQM4 for PCB layout 2014-03-27 19:37:50 SQM4_footprint.pdf
SQM4-SX6-v10 Datasheet Datasheet of SQM4-SX6 module 2015-10-09 20:59:50 To download this file you must be logged!
SQM4_SCH_DECAL_Lib Design Library for PADS, ORCAD, EAGLE and ALTIUM 2015-10-06 09:36:09 To download this file you must be logged!
SQM4-SX6v10-SCH Schematic of SQM4-SX6 module 2015-10-09 21:03:30 To download this file you must buy this product!
iMX6SXpinmux Pinmux for SQM4-SX6 modules 2016-03-11 14:46:19 To download this file you must buy this product!

Hardware

MCIMX6X4AVM08AB Processor at the NXP website
KSZ9031RNX Gigabit Ethernet PHY at the Micron website
MT29F2G08ABAEAH4-IT NAND Flash at the Microchip website
AB-RTCMC-32.768kHz-EOZ9-S3 RTC Application Manual

Software

eln-community-bsp-platform Yocto BSP platform manifest at Github



There are some files to download. If you purchased this product, you can find available files here.
Processor
Part MCIMX6X4AVM08AB
Core ARM Cortex A9 + ARM Cortex M4
Frequency 800 MHz + 200 MHz
Cache A9: 32 KB I L1, 32 KB D L1, 256 KB I/D L2; M4: 16 KB I, 16 KB D
SRAM 128 KiB
FPU A9: NEON MPE; M4: FPU
Security RNG, TrustZone, eFuses, Ciphers
Memory
DDR On Module 1 GiB (256 M x 32)
NAND On Module 256 MiB (256 M x 8)
QSPI 32 MB (256 Mb) (optional)
Networking
Ethernet 1x / 2x Gb PHY (KSZ9031RNX)
Display and Multimedia
RGB 1x 24-bit
LVDS 1ch
CSI 2x 20-bit
NTSC 1x
MLB 1x
Graphics Accelerators 3D+2D GPU, PXP
Connectivity
USB 2.0 OTG PHY + 2.0 Host PHY + 2.0 HSIC Host
MMC/SD 4x
UART 6x
I2C 4x
SPI 5x
I2S, ESAI 5x
CAN 2x
PCIe 1x PCIe 2.0 (x1 lane)
GPIO up to 120x
Other Peripherals
ADC 1x 12-bit
RTC High-precision (AB-RTCMC-32.768kHz-EOZ9-S3) (optional)
Electrical
Supply Voltage 3.7 V to 5.5 V DC or 3.3 V to 4.5 V DC
Supply Current 350 mA
Output Voltage 3.3 V or variable
Output Current 0 to 350 mA
Mechanical
Dimensions (W x H x D) 42 mm x 42 mm x 5.5 mm (8.5mm with JTAG connector)
Weight 65 g
Condition
Operating Temperature -40 °C to +85 °C
Operating Ambient Humidity 10 to 90 % RH
Storage Temperature -40 °C to +105 °C
Storage Humidity 10 to 90 % RH
