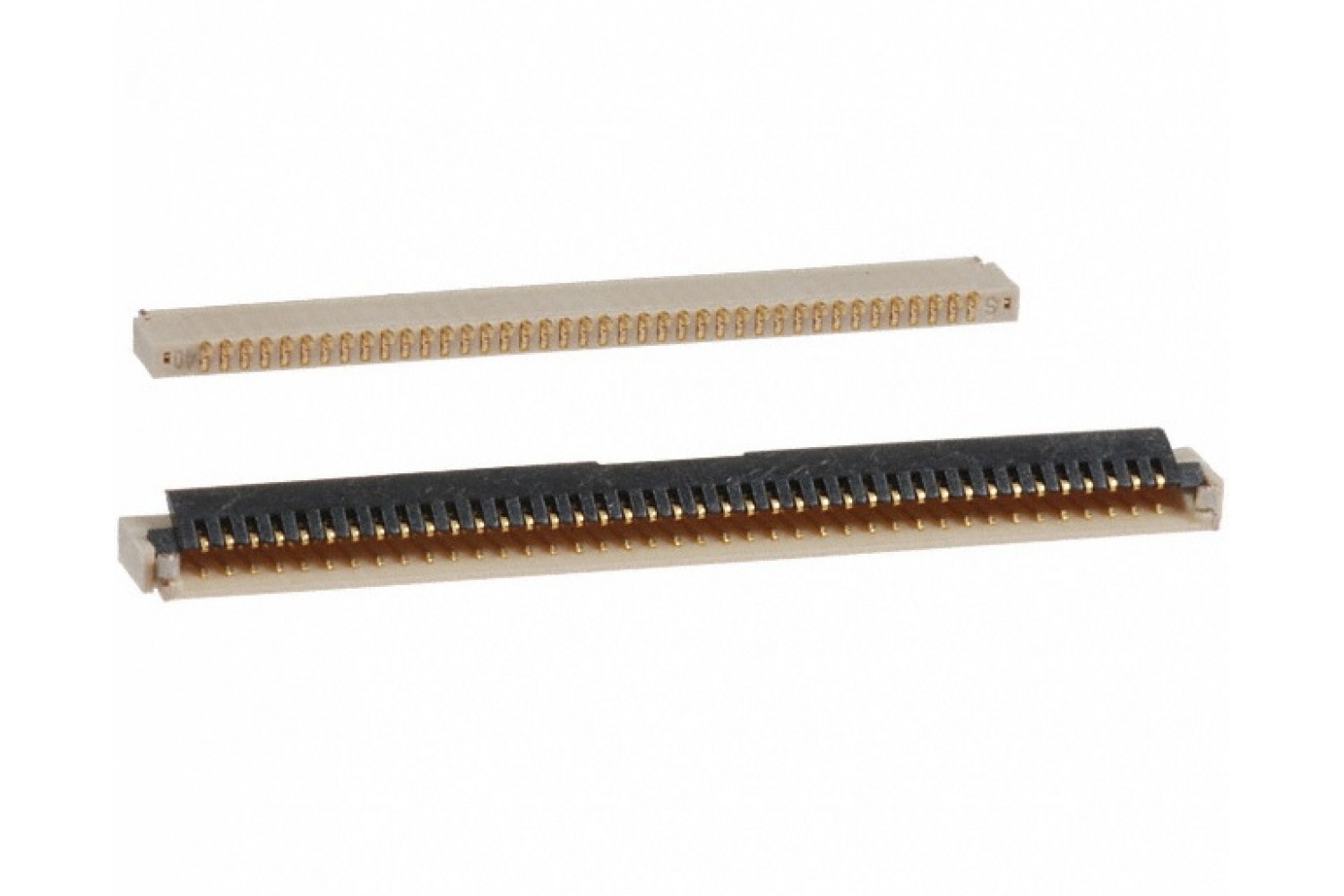

FH19SC-40S-0.5SH(05)

FH19SC-40S-0.5SH(05)
Brand: HIROSE
Product Code: FH19SC-40S-05SH
Availability: Out Of Stock
Price: $2.74

10 or more $2.71
Qty:

FPC connector for LCD connecting to main PCB. Miniaturization of portable equipment and personal mobile devices has created increased demand for a low profile, high density, and high reliability connectors.

  • The design of this connector has been made thinner and smaller, with a height of 0.9mm and width of 3mm.
  • PCB footprint: Reduced approximately 48% (as compared with Hirose Electric's 0.5mm pitch FH12 Series connectors)
  • Connector weight: Reduced approximately 78% (as compared with Hirose Electric's 0.5mm pitch FH12 Series connectors)

In case of empty stock, please use a compatible alternative BL134-G40-00R!

Filename Description Date added Download link
Hirose_FH19SC-40S-05SH Datasheet of Hirose LCD 40x0.5 connector 2014-03-26 20:27:56 Hirose_FH19SC-40S-05SH.pdf
There are some files to download. If you purchased this product, you can find available files here.
Specification
Interconnect FPC 40 x 0.5mm
Electrical
Supply Voltage 50 VDC
Supply Current 0,5A
Mechanical
Dimensions (W x H x D) 25 x 6 x 0.9 mm
Weight 5 g
Condition
Operating Temperature -55°C to +85°C
