FRD5040TP-T

Brand: FRIDA
Product Code: FRD5040TP-T
Availability: In Stock
Price: $29.55

5 or more $28.37
10 or more $27.77
50 or more $26.89

Available Options


Touch Screen:


Qty:

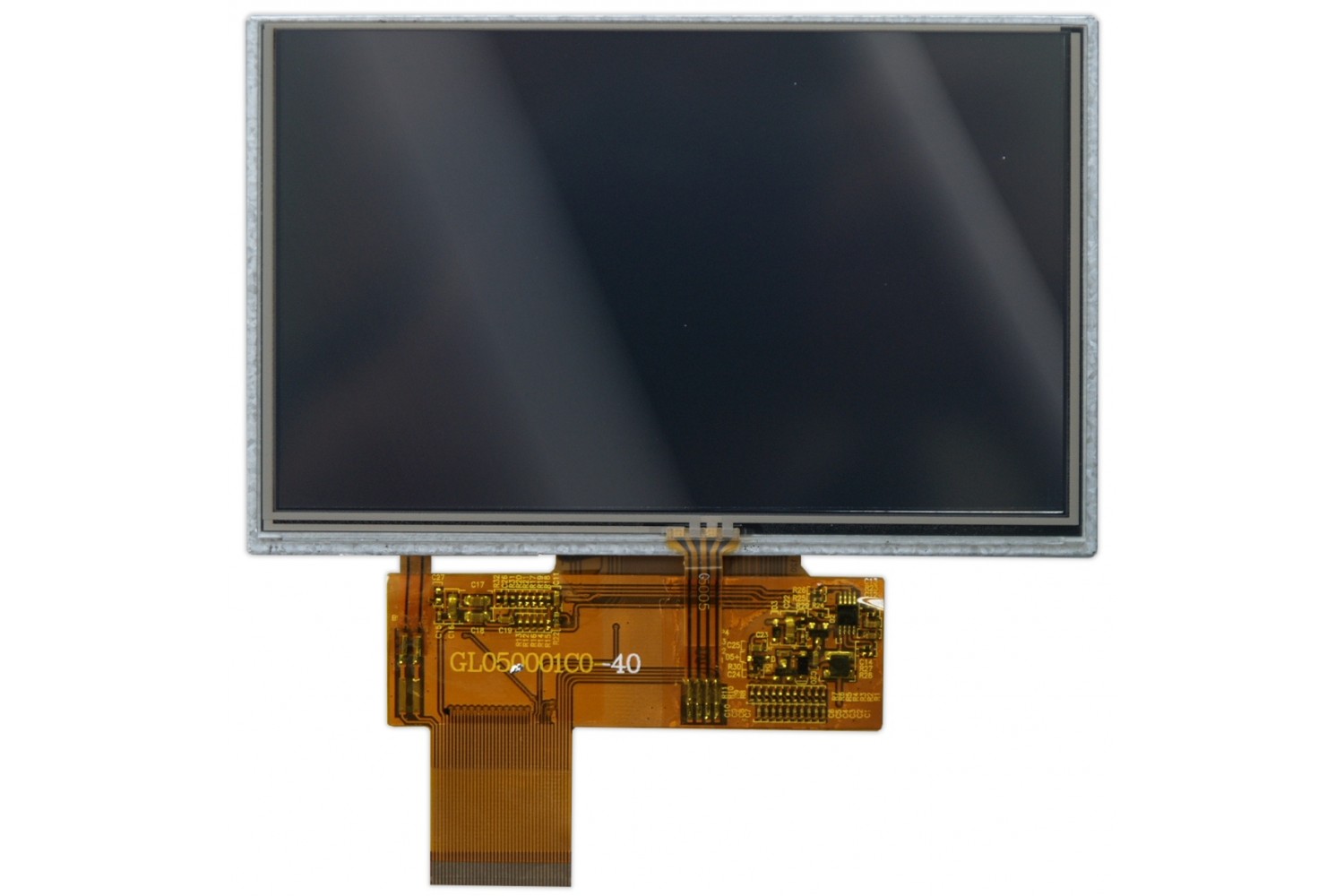

The FRD5040TP-T is a low power 5" color TFT display module with 800(RGB)X480 resolution and 24bit RGB digital interface. Each pixel is divided into Red, Green and Blue sub-pixels and dots which are arranged in vertical stripes.

LCD color is determined with 262,000 colors signal for each pixel plus 256 gray scale with dithering to realize 16M colors. The FRD5040TP-T has been designed to apply the interface method that enables low power, high speed, and high contrast. The FRD5040TP-T is intended to support applications where thin thickness, wide viewing angle and low power are critical factors and graphic displays are important.

The driver OTD9960 and OTA7001 is mounted on the glass and the interconnection via FPC including components to drive the display module.

Features

  • normally white transmissive LCD
  • 12 o'clock viewing direction
  • RGB input signal
  • RGB vertical stripes pixel arrangement
  • OTD9960 and OTA7001 IC drive
  • 4 wire resistive touch screen
  • compatible connector pinout SET_1
  • white LED backlight 2x6 chips
Filename Description Date added Download link
OTA7001A Datasheet: Driver OTA7001A 2014-03-26 20:46:36 IC_OTA7001A.pdf
OTD9960A Datasheet Driver OTD9960A 2014-03-26 20:47:59 OTD9960A_V01.pdf
FRD5040TP-T Datasheet: Display LCD FRD5040TP-T 2014-03-26 20:44:45 To download this file you must be logged!
There are some files to download. If you purchased this product, you can find available files here.
Specification
Diagonal 5.0"
Resolution 800 x 480
Aspect Ratio 16 : 9
Viewing Angle TOP - 12 o'clock
Interface 24-bit Digital RGB
Contrast Ratio 300
Luminance 280 cd/m2
Interconnect ZIF 40 x 0.5 mm
Electrical
Supply Voltage 3.3V
Supply Current 15 mA without LED backlight
LED Backlight Voltage 19.2 V
LED Backlight Current 40 mA
Mechanical
Dimensions (W x H x D) 108.0 mm x 64.8 mm x 3.1 mm
Viewing Area (W x H) 108.0 mm x 64.8 mm
Pixel Pitch (W x H) 0.135 mm x 0.135 mm
Condition
Operating Temperature -20°C to +70°C
Operating Ambient Humidity 10 to 90 % RH
Storage Temperature -30°C to +80°C
Storage Humidity 10 to 90 % RH
